RA2 New Devices




          ceiling mount                       corner mount

         image© 2018 Lutron Electronics

3 types of battery powered RA 2 Sensors when the room is unoccupied. These sensors mount to the ceiling or wall and communicate with the assigned dimmers to activate or deactivate, based upon motion in the room.

Ceiling Mount 360 degree view          LRF2-OCR2B-P-WH

Corner Wall mount 180 degrees         LRF2-OKLB-P-WH

Hallway mount 90 degrees view         LRF2-OHLB-P-WH

Click here to learn more about these wall mount sensors



    image© 2018 Lutron Electronics

Lutron RadioRA 2 Connect Bridge

The Lutron Connect Bridge creates a link between a RadioRA 2 system and the Lutron Cloud, which will allow you to have remote access from the Lutron connect bridge to your lighting system.

There are no annual fees once you purchase the connect bridge and attach to your home router.

* This is the new bridge for Apple HomeKit

Click here to learn more about the RadioRA 2 Connect Bridge and HomeKit












LMJ-5T-DV-B Dimming Module 0-10V Control.

The RF Dimming Module with 0–10 V- control is a radio frequency (RF) control that operates 0–10 V- controlled fluorescent ballasts or LED drivers based on input from the RadioRA 2  systems.


• 0-10 V- control link automatically sources or sinks up      to 60 mA to third-party fixtures.
• Switches line voltage up to 5 A.
• Configurable high- and low-end trim.
• Various operating voltages available—refer to model number chart below for details on voltage requirements.
• Utilizes Lutron Clear Connect RF Technology
• Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening.

* Does require the  Level 2 programming  software

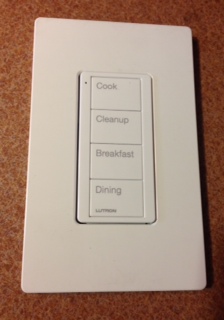

  • new 4 button Pico controller for RadioRA 2

                     A wonderful addition to the popular line of Pico Controllers, this 4 button                            version will allow you to program multiple preset scenes on to one controller.

  • Available with standard engraving or personalized engraving
  • 10 YEAR BATTERY LIFE install on any wall surface
  • adds an intuitive keypad option to the Pico wireless  family
  • Uses Lutron's clear connect RF technology for reliabilty
  • Available in gloss finish:  white,  Ivory, Black and Light Almond.
  • Click here to learn more about the 4 button pico
