RA 2  and RA 3 Dimmers

 When starting out on a RA 2 and RA 3 dimmer installation there are a few important facts to note. All dimmers and on/off switches have to be   hard wired to your lighting loads and it is vital to match the appropriate dimmer to the lighting types that is being controlled. The Dimmers         receive RF signals from a variety of master controllers which in turn controls your lighting. These commands come from in wall and                 tabletop keypads, from Pico controllers, smart phone and tablets. Plus "voice control" is becoming very important within the home.

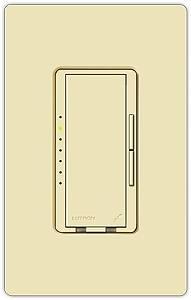

image© 2023  Lutron Electronics image© 2023  Lutron Electronics image© 2023  Lutron Electronics                                                        RadioRA 2 dimmers and switches "Matching the correct dimmer to the lighting type is vital to ensure solid performance" 1000 Watt dimmer   # RRD-10D   incandescent / magnetic low voltage, loads over 600 watts 1000 Watt dimmer  # RRD-10ND incandescent / magnetic low voltage, neutral based dimmer.   on/off switch switch # RRD-8ANS  8 amp on/off switch no dimming  Bulbs tested and approved by Lutron to work with their dimmers.                               For a list of compatible bulbs click on this link                          Click here to visit Lutrons approved Lighting bulbs                    Lutron have upgraded their dimmer offering for both the full RA 2 and RA 2 Select and for the new RA 3.  All Lighting Systems now can use the 3 dimmers RRD-6ND and RRD-PRO and Sunnata RRST-PRO however Sunnata can only be used with RA 3    Led neutral based dimmer part # RRD-6ND This RA 2 and RA 3 neutral based dimmer will handle up to 600 watts of incandescent, magnetic LV and 150 watts of led. It will not work on Electronic lighting. Please make sure that the bulbs being used have been tested and approved by Lutron otherwise it becomes "buy it and try it technology" Led dimmer for all lighting loads part # RRD-PRO This new dimmer automatically adapts to the load type by providing control for a wider variety of lighting fixtures. This dimmer has an almost universal application for lighting types such as: Incandescent, Electronic Low Voltage, Magnetic Low Voltage and dimmable led's (neutral wire optional) the pro dimmer is a solid performer for most led lights.    Lutron RadioRA 3 Sunnata dimmer Features & Specifications Sunnata touch dimmer with LED+ Advanced Technology provides superior dimming for LEDs, incandescent, halogens and ELV Installation is simple; 3 steps in as little as 15 minutes. LED+ dimmer works in homes with a neutral wire. Matching look and feel in multiple locations. Soft glow helps you find in the dark. Use in a 3 way with the matching companion dimmer

Do you have a neutral wire ? find out now and why you may need one.

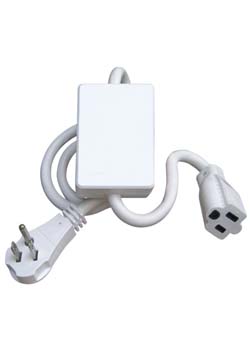

Tabletop lamp Dimmer module        part # RRD-3LD-WH Allows the control of one plug-in lamp (2 prong only) as part of a RadioRA 2 System. Lights fade up or down over 3 seconds when turned on or off. Double tap brings lights to full on. Plugs into a standard wall outlet. Load Type: Incandescent and Magnetic LV, for table and floor lamps maximum 300 watts. Some high grade leds' work well Tabletop lamp Dimmer module        part # RR-3PD-1-SW Allows the control of one plug-in lamp (2 prong only) as part of a RadioRA 2 System. Lights fade up or down over 3 seconds when turned on or off. Double tap brings lights to full on. Plugs into a standard wall outlet. Load Type: Incandescent and Magnetic LV, some dimmable led bulbs for table and floor lamps maximum 300 watts. Plug in appliance switch module     part # RR-15APS-1-SW RadioRA 2 RF Plug-in switch module allow general purpose switching loads to be added to a system quickly and easily using Lutrons Clear Connect RF Technology. These modules can be hidden behind furniture or appliances.                                                       RRD-3LD-WH                                        RR-3PD-1-SW                              RR-15APS-1-SW     image© 2023  Lutron Electronics                   image© 2023  Lutron Electronics               image© 2023  Lutron Electronics For an instant price quote please call or text me at: 818-970-1702 If you have any questions about the components, please contact me before you purchase, I provide free advice. Due to current component shortages, I suggest you call me first before ordering for accurate delivery times.                  Steve Davies   cell  818-970-1702   available everyday  8:00 am -10:00 pm PST
